Plettac Frame
|
Steel-Vertical Frame- SL W74
Hot Dip Galv.
Steel Tube: 48.3x3.2mm or 48.3x2.8mm,
Other sizes upon your request
| Code |
Height(m) |
Width(m) |
Weight(kg) |
| NTS-PVF020 |
2.0 |
0.74 |
21.5 |
|
 |
Vertical Brace SL
Hot Dip Galv.
Steel Tube: 48.3x2.5mm or 42x2.5mm,
Other sizes upon your request |
| Code |
Length(m) |
Weight(kg) |
| NTS-PVB0326 |
3.26 |
10.8 |
| NTS-PVB0366 |
3.66 |
12.1 |
|
|
 |
Guard Rail SL
Hot Dip Galv.
38x2.0mm or 32x2.0mm,
Other sizes upon your request |
| Code |
Length(m) |
Weight(kg) |
| NTS-PGR025 |
2.5 |
5.45 |
| NTS-PGR030 |
3.0 |
6.55 |
|
|
Scaffold Tie
Hot Dip Galv.
Height : 48.3x3.0mm
Other sizes upon your request
| Code |
Length(m) |
Weight(kg) |
| NTS-PST060 |
0.6 |
2.55 |
| NTS-PST010 |
1.0 |
3.89 |
|
|

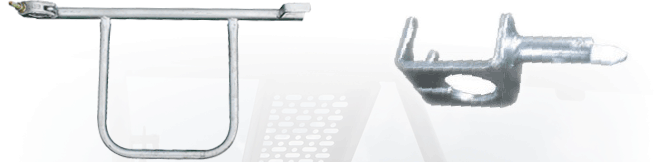

| Code: |
NTS-PSB74 |
| Description: |
Side Bracket W74 H50
to offset by one frame width |
| Size: |
Height 0.5m x 0.74m Width |
| Weight: |
11.39 kg |
|
| Code: |
NTS-PGRS |
| Description: |
Steel Guard Rail Support SL
to be secured by pig tail pin |
| Size: |
Height 1m x 0.74m Width |
| Weight: |
6.23 kg |
|
|
 |
| Code: |
NTS-PDE |
| Description: |
Double End Guard Rail SL act as side protection and close the end of scaffold |
| Size: |
0.74m, other size upon request |
| Weight: |
4.20 kg |
|
| Code: |
NTS-PDFB |
| Description: |
Diagonal Fixing Bracket SL put between base plates and Vertical |
| Size: |
Frame to adapt Vertical Brace |
| Weight: |
0.8 kg |
|
|
Steel Deck SL W32
Hot Dip Galv.
Height : 75mm, Width: 320mm,Thickness:1.8mm or 1.5mm
Other sizes upon your request
| Code |
Length(m) |
Weight(kg) |
| NTS-PSD025 |
2.5 |
21.0 |
| NTS-PSD030 |
3.0 |
23.6 |
|
| Code: |
NTS-PSJ |
| Description: |
Screw Jack |
| Size: |
38 x 4mm steel tube, 150 x 150 x 5mm base plate |
| Height: |
0.4m, 0.6m, 0.8m, other sizes upon your request |
| Surface: |
Electro Plated or Hot Dip Galv. upon request |
|
